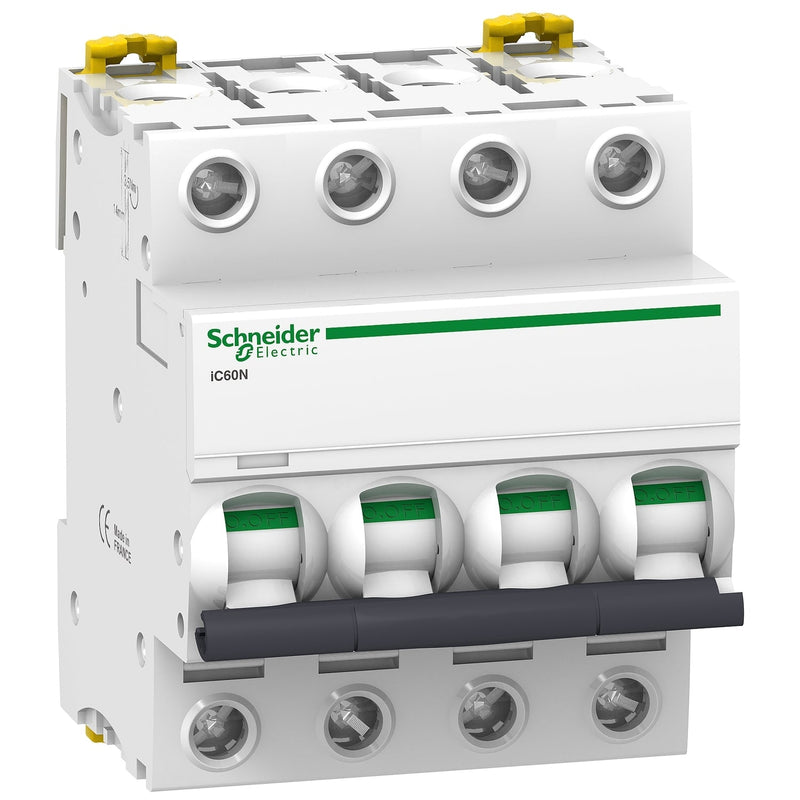

A9F74420 Schneider Electric Acti9 iC60N Miniature Circuit Breaker 4P C20A 10kA

High-Performance 4-Pole MCB for Residential & Industrial Use

The Schneider Electric A9F74420 is a premium 4-pole Miniature Circuit Breaker (MCB) from the Acti9 iC60N series. Designed for overload and short circuit protection, this 20A Type C MCB offers dependable performance in both residential and industrial electrical systems.

Key Specifications:

• Brand: Schneider Electric

• Model: Acti9 iC60N

• SKU: A9F74420

• Number of Poles: 4 (all protected)

• Rated Current: 20 Amps

• Tripping Curve: Type C

• Breaking Capacity:

  • 6000A at 400VAC (IEC/EN 60898-1)

  • 10kA at 240VAC (IEC/EN 60947-2)

Features:

• VisiTrip indicator: Highlights the tripped circuit for fast identification

• VisiSafe technology: Ensures safe contact disconnection for maintenance

• Durable build:

  • Electrical endurance: 10,000 cycles

  • Mechanical endurance: 20,000 cycles

• Mounting Type: DIN rail

• Insulation Voltage (Ui): 500VAC

• Protection Rating: IP20 (IP40 when enclosed)

• Operating Temperature: -35°C to +70°C

• Dimensions: 72mm (W) x 85mm (H) x 78.5mm (D)

• Weight: 0.5 kg

Built to meet international safety standards, the A9F74420 is a trusted solution for high-performance circuit protection in distribution boards and control panels.
