2CDS251001R0064 ABB SH203-C6 MCB 1P 6A C Curve 6kA DIN Rail

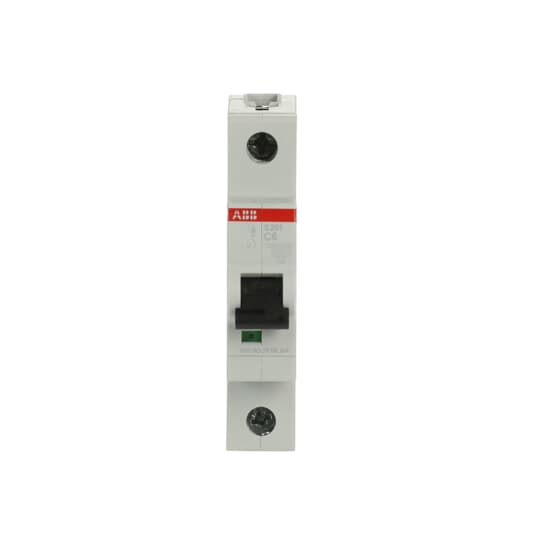

The ABB S201-C6 (article 2CDS251001R0064) is a single-pole miniature circuit breaker from the S200 System pro M compact range, rated at 6 A with a C tripping characteristic. It combines delayed thermal overload protection with electromechanical short-circuit protection, delivering a 6 kA AC breaking capacity for dependable branch circuit protection across a wide range of installations.

Technical specifications:

• Series: S201-C6
• ABB article number: 2CDS251001R0064
• EAN: 4016779464000
• Rated current: 6 A
• Poles: 1P (single pole)
• Tripping characteristic: C
• Breaking capacity: 6 kA (AC)
• Voltage: 230/400 V AC

Features and benefits:

• Current-limiting design reduces the energy let-through during fault conditions
• Dual tripping mechanisms: delayed thermal element for overload protection and electromechanical element for short-circuit protection
• C tripping characteristic suited to loads with moderate inrush currents in general distribution circuits
• Bottom-fitting auxiliary contact can be added without extra panel width, saving 50% space compared to side-mounted accessories
• Complies with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077, permitting use across residential, commercial, and industrial applications

Applications:

• Residential consumer units and distribution boards
• Commercial building sub-distribution panels and branch circuits
• Industrial control panels and machinery branch circuit protection
• General-purpose final circuit protection where moderate inrush loads are present

Also known as: ABB S201-C6, S201-C6 2CDS251001R0064, ABB 6A C-curve MCB, ABB miniature circuit breaker 6A 1P, 2CDS251001R0064.
