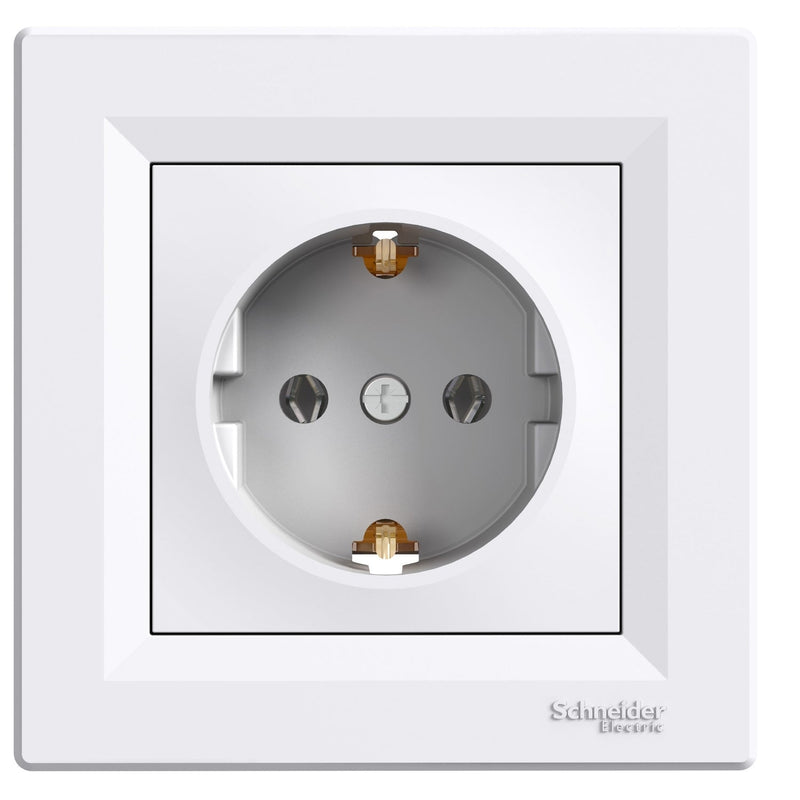

Schneider EPH2900121 Asfora Socket outlet 2P+E White with Frame

The Schneider Electric EPH2900121 is a single socket outlet from the Asfora series, designed for flush-mounted installation in residential and light commercial settings. Rated at 16 A / 250 V AC with a 2P+E pole configuration, it delivers up to 3680 W and meets the CEE 7/3 (Schuko) standard with side earthing contact.

Technical specifications:

• Commercial reference: EPH2900121
• Manufacturer: Schneider Electric
• EAN:
• Series / range: Asfora
• Product type: Socket outlet
• Number of outlets: 1
• Pole configuration: 2P + E
• Rated current: 16 A at 250 V AC
• Power range: 3680 W
• Outlet standard: CEE 7/3 (Schuko) - side earthing
• Colour: White, gloss finish
• Mounting: Flush-mounted
• Fixing method: Screws or claws, 51-69 mm
• Connection type: Screw terminals
• Number of cables: 2 x 2.5 mm²
• Cable flexibility: Flexible, rigid, single-wire, multi-wire
• Strip length: 13.0 mm
• Conductor material: Copper
• Material: ABS (decorative frame), ABS + PC (central plate)
• IP protection rating: IP20
• Width: 83 mm
• Height: 83 mm
• Depth: 42 mm
• Design depth: 10 mm
• Product weight: 0.08 kg
• Standard: IEC 60884-1
• Certifications: TSE, VDE
• Warranty: 18 months

Features and benefits:

• CEE 7/3 Schuko standard with side earthing for safe, grounded connections
• Gloss white finish with ABS decorative frame for a clean, modern aesthetic
• Compatible with both flexible and rigid copper conductors up to 2.5 mm²
• Flush-mounted design with screw or claw fixing, accommodating wall boxes from 51 to 69 mm
• IP20 protection rating suitable for dry indoor environments
• Certified to TSE and VDE standards, compliant with IEC 60884-1

Applications:

• Residential rooms including living rooms, bedrooms, and hallways
• Light commercial offices and reception areas
• Hotel and hospitality room fit-outs requiring a coordinated wall plate system
• Renovation projects replacing existing flush-mounted socket outlets

Compliant with IEC 60884-1 and certified by TSE and VDE. Part of the Schneider Electric Asfora range.

Also known as: Schneider EPH2900121, Schneider Electric EPH2900121, Asfora socket outlet, Schuko socket outlet white.
