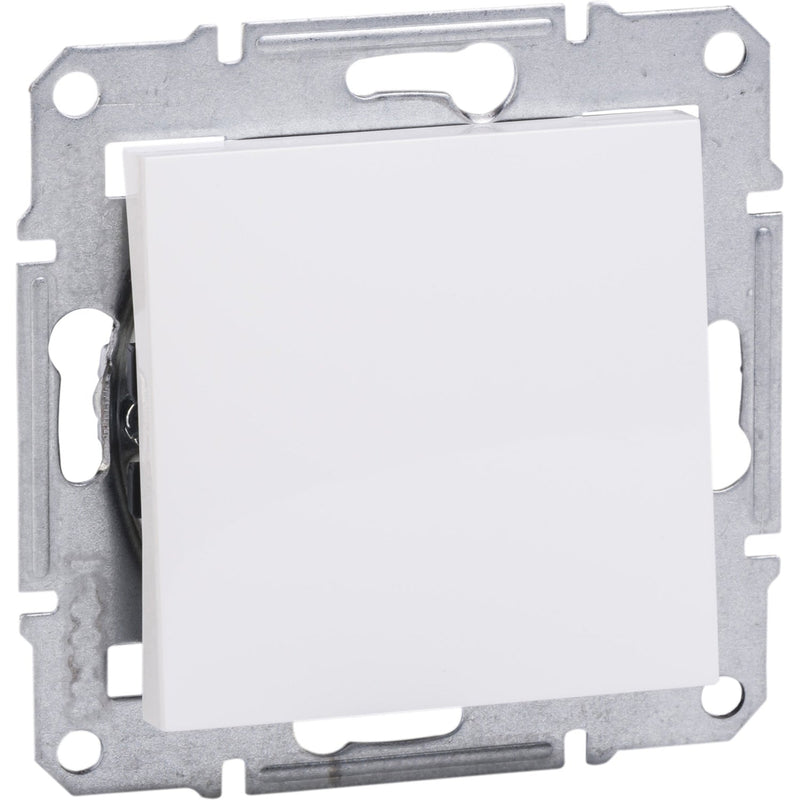

Schneider EPH0401421 Asfora 2-Way Switch 10AX IP20 Cream Without Frame

The Schneider Electric EPH0401421 is a 1-pole 2-way (staircase) switch from the Asfora flush-mounted range in cream, supplied without frame. Rated 10AX at 250V with screwless push-in terminals, enabling switching from two locations.

Technical specifications:

• Part number: EPH0401421
• Manufacturer: Schneider Electric
• Series: Asfora
• Type: 1-pole 2-way switch (mechanism only, no frame)
• Rated current: 10AX
• Rated voltage: 250V AC
• Material: ABS thermoplastic
• Connection: Screwless push-in terminals, conductors up to 2.5 mm²
• Mounting: Flush-mounted, screw and claw fixing
• Mechanism dimensions: 83 x 83 x 43 mm, projection 15 mm
• Minimum back box depth: 40 mm
• Ingress protection: IP20
• Frame: Not included - requires separate Asfora cover frame
• Compliant with IEC 60669-1; CE certified

Features and benefits:

• Screwless terminals - fast, tool-free conductor connection for quicker installation
• Cream finish - matches Asfora cream frames and sockets for consistent room aesthetics
• 2-way operation - lighting control from two separate switch positions

Applications:

• Staircase and corridor lighting switched from two points
• Bedroom and lounge entry/exit 2-way switching
• Multi-location lighting control in cream-coloured Asfora installations

Also known as: Schneider EPH0401421, Asfora 2-way switch cream frameless, staircase switch 10AX cream.
