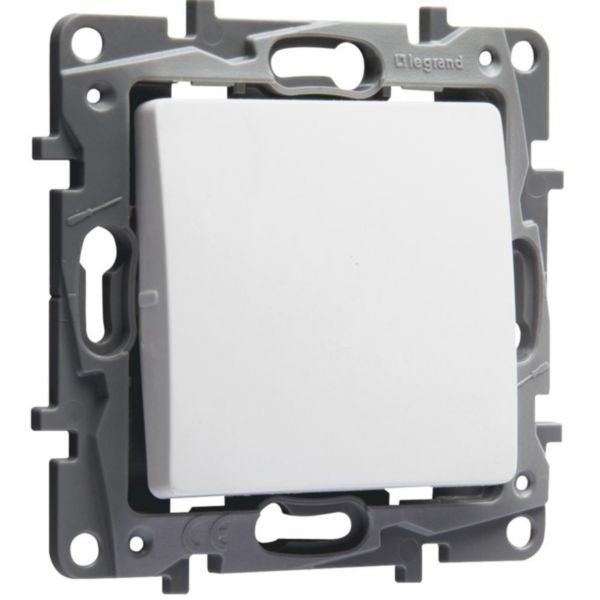

Legrand 664701 Niloé 2-Way Switch 10A White

The Legrand 664701 is a Niloé two-way (va-et-vient) flush-mounting mechanism rated 10 A at 250 V~. It is finished in White, supplied with cover plate and support, and uses screw terminals for wired connection.

Technical specifications:

• Catalog reference: 664701
• Manufacturer: Legrand
• EAN: 3245066647012
• Dimensions (W × H × D): 76 × 76 × 34 mm
• switching type: Two-way (va-et-vient)
• command type: Toggle
• composition: Mechanism with cover plate
• actuation toggles: 1
• Installation type: Flush-mounted
• fixing type: Screw terminal
• frame included: Yes
• Material: Thermoplastic
• Halogen-free: Yes
• surface finish: Glossy
• Colour: White
• ral equivalent: 9003
• Degree of protection (IP): IP31
• Impact resistance (IK): IK04
• Nominal voltage: 250 V
• Rated current (In): 10 A
• fluorescent switching current: 10 AX
• recess depth mm: 20
• min box depth mm: 30
• Operating temperature: -5 to 35 °C
• Storage temperature: -5 to 35 °C
• Voltage type: AC
• Frequency: 50-60 Hz
• cable section: 1.5 mm²

Features and benefits:

• Niloé range delivers contemporary finish at an entry-level price point for residential and light-commercial installations.
• Halogen-free thermoplastic reduces toxic emissions in the event of fire.
• Screw terminals provide a robust, vibration-resistant connection.
• Compatible with the full Niloé plate and frame system for a coordinated installation.

Applications:

• Domestic lighting control in residential rooms, hallways and staircases.
• Light commercial interiors specifying a coordinated entry-level finish.
• New-build and refurbishment projects using Niloé multi-gang plate assemblies.
• Switching applications up to 10 AX at 250 V~ in flush-mounted Batibox enclosures.

Also known as: Legrand 664701, 664701, Niloé Switches & Pushbuttons.
