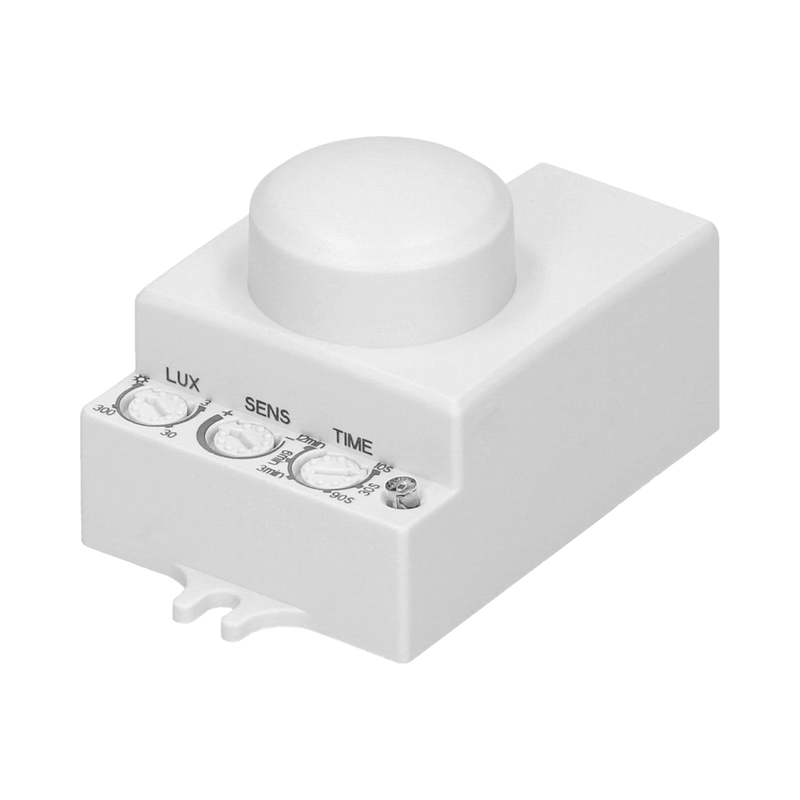

ORNO OR-CR-216 Mini Microwave Motion Sensor 360° 1200 W 230 V Indoor

The ORNO OR-CR-216 is a miniature microwave (radar) motion sensor for indoor use. Its compact dimensions allow installation inside luminaires and light fixtures. Three parameters are independently adjustable: lighting time (TIME), daylight sensitivity threshold (LUX), and motion detection range (SENS). A built-in twilight sensor and timer are included, and detection performance is unaffected by ambient temperature.

• Sensor type: Microwave (radar)
• Nominal voltage: 230 V~, 50 Hz
• Max. load: 1200 W
• Max. load (LED light source): 300 W
• Detection angle: 360°/180°
• Detection range: 1–8 m
• Lighting time (TIME) range: 10 sec (±3 sec) to 12 min (±1 min), adjustable
• Daylight threshold (LUX) range: < 3–2000 lux, adjustable
• Motion detection sensitivity (SENS): Adjustable
• Installation: Surface mounting
• Degree of protection: IP20
• Working temperature: −20 °C to +50 °C
• Dimensions (W × H × D): 39.4 × 54.6 × 37.2 mm
• Colour: White
