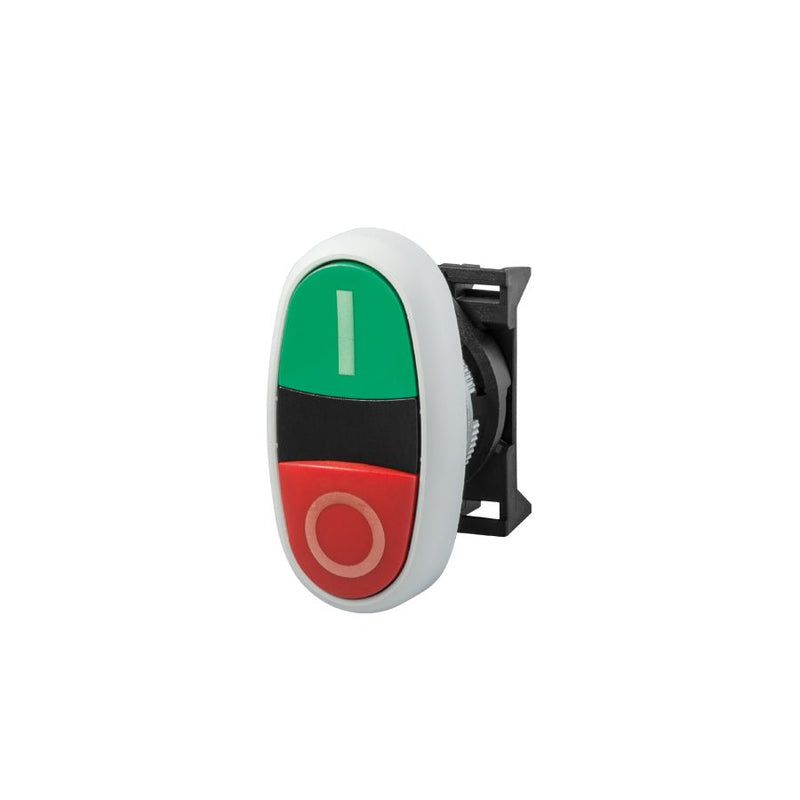

Giovenzana PPDNGL4X Red-green dual push button I/O NEMA 4X

The Giovenzana PPDNGL4X is a dual push button unit with red and green buttons rated NEMA 4X (IP66) for outdoor/washdown use, providing two separate momentary contacts in a single 22mm-compatible panel assembly. Dual push buttons simplify start/stop and directional control wiring by combining both buttons in one unit.

Technical specifications:

• Part number: PPDNGL4X
• Manufacturer: Giovenzana
• Series: PPD
• Type: Dual push button
• Configuration: Red-green dual push button I/O NEMA 4X
• Action: Momentary (spring return)
• Standards: IEC 60947-5-1

Features and benefits:

• Combined start/stop or directional control in a single unit reduces panel space and wiring
• Colour coding follows IEC convention: green = start/I, red = stop/O
• Illuminable version accepts pilot lamps to indicate circuit status
• NEMA 4X (IP66) rating for outdoor and washdown environments

Applications:

• Motor start/stop push button stations
• Direction control (up/down, forward/reverse) in machine panels
• Compact operator interface where panel space is limited

Compliant with IEC 60947-5-1.

Also known as: Giovenzana PPDNGL4X, PPD dual push button start stop, red-green dual push button i/o nema 4x, Giovenzana start stop button panel.
