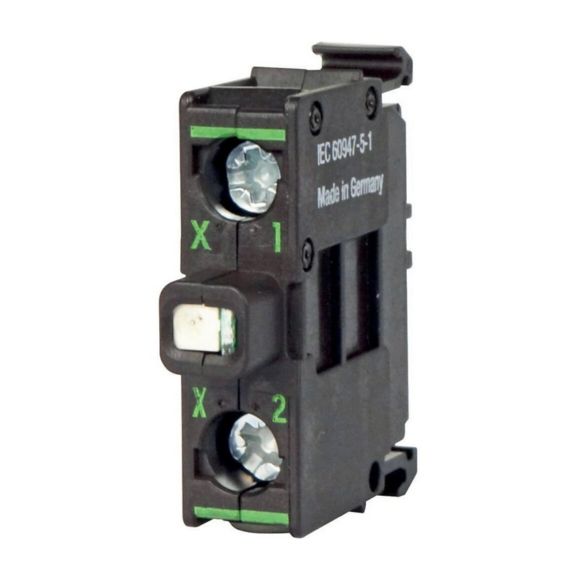

Eaton 218060 M22-LEDC230-B M22 LED Element Blue 85-264V AC

The Eaton M22-LEDC230-B is a blue LED light element in the Moeller M22 series, designed for base fixing into 22 mm operator panel cutouts. It operates across a wide AC voltage range of 85-264 V, covering both 120 V and 230 V supply systems without component changes. Power consumption is a maximum of 0.33 W with a rated LED lifespan of 100,000 h at 25 °C.

Technical specifications:

• Model code: M22-LEDC230-B
• Catalog number: 218060
• Manufacturer: Eaton
• EAN: 4015082180607
• Product type: LED element
• Light color: Blue
• Lamp type: LED
• Rated operational voltage (AC): 85-264 V
• Rated operational current: 5-15 mA
• Power consumption: Max. 0.33 W
• Rated insulation voltage (Ui): 500 V
• Rated impulse withstand voltage (Uimp): 6000 V AC
• Overvoltage category: III
• Pollution degree: 3
• Degree of protection: IP20
• Connection type: Base fixing, screw connection
• Terminal capacity (stranded): 0.5-2.5 mm²
• Terminal capacity (solid): 0.75-2.5 mm²
• Operating torque: 0.8 Nm
• Ambient operating temperature: -25 °C to +70 °C
• Lifespan: 100,000 h at 25 °C per EN 60064
• Shock resistance: 30 g, sinusoidal 11 ms per IEC/EN 60068-2-27
• Dimensions (W x H x D): 37 x 10 x 38 mm
• Weight: 0.011 kg
• Static heat dissipation: 1 W
• Certifications: CE, UL 508 (File No. E29184), CSA (File No. 012528), VDE
• Standards: IEC/EN 60947-5-1, UL 508, CSA C22.2 No. 14-05

Features and benefits:

• Wide voltage range of 85-264 V AC eliminates the need for separate 120 V and 230 V variants, simplifying stock management
• 100,000 h LED lifespan substantially reduces maintenance intervals compared to conventional incandescent lamp holders
• Maximum power consumption of 0.33 W delivers energy-efficient panel signalling with minimal heat load
• Overvoltage category III and pollution degree 3 rating suit demanding industrial panel-building environments
• Screw connection and base fixing allow secure, tool-assisted installation in M22 series assemblies

Applications:

• Status and run indication on motor control panels and operator control stations
• Fault, ready, and power-on signal lamps in industrial control desks
• Panel indicator lighting in automation and process control cabinets
• Signalling in switchgear assemblies and building automation systems

Compliant with IEC/EN 60947-5-1, UL 508, and CSA C22.2 No. 14-05. Part of the Eaton Moeller M22 pushbutton and signalling series.

Also known as: Eaton M22-LEDC230-B, Eaton 218060, Eaton catalog 218060, Eaton model M22-LEDC230-B, M22 blue LED pilot light 230 V, Eaton M22 blue signal lamp.
