Eaton 216710 M22-DDL-S-X7/X7 M22 Pushbutton 22.5mm Black momentary

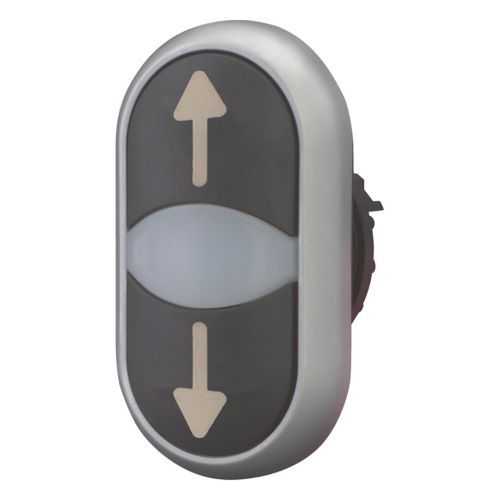

The Eaton M22-DDL-S-X7/X7 (catalog 216710) is a double actuator pushbutton from the RMQ-Titan M22 series, providing momentary spring-return control through two black actuators in a single Ø 22.5 mm panel cutout. Its white inscribed oval lens displays an arrow-up symbol; IP66 / NEMA 4X front protection and an operating range of -25 °C to +70 °C suit demanding industrial environments.

Technical specifications:

• Model code: M22-DDL-S-X7/X7
• Catalog number: 216710
• Manufacturer: Eaton
• EAN: 4015082167103
• Product type: Double actuator pushbutton
• Actuator function: Momentary, spring-return
• Actuator color: Black / Black
• Lens: White, oval
• Bezel: Titanium, plastic
• Design: Non-flush, classical, flat front
• Inscription: Arrow up
• Fitted with: Front ring
• Command positions: 2
• Panel cutout: Ø 22.5 mm
• Front dimensions: 29.7 x 54.7 mm
• Overall dimensions (L x W x H): 30 x 30 x 55 mm
• Weight: 0.015 kg
• Actuating force: 5 N
• Operating frequency: 3600 operations/h
• Mechanical lifespan: 200,000 operations
• Ambient operating temperature: -25 °C to +70 °C
• Protection (front): IP66, NEMA 4X
• Protection: NEMA 3R, NEMA 12, NEMA 13
• SmartWire-DT connection: Yes, via SWD-RMQ
• Shock resistance: 30 g, sinusoidal 11 ms (IEC/EN 60068-2-27)
• Suitable for illumination: Yes
• Certifications: CE, UL (E29184), CSA (012528), DNV, GL, LR, VDE 0660

Features and benefits:

• Dual actuators deliver two independent command positions within one Ø 22.5 mm panel cutout, minimising board space
• Momentary spring-return action provides automatic reset after each press for safe operation
• IP66 / NEMA 4X front rating resists dust ingress and high-pressure water jets
• SmartWire-DT ready via SWD-RMQ connection, reducing wiring complexity in the control cabinet
• 200,000 mechanical operations rated lifespan supports high-cycle production environments

Applications:

• Machine tool and automation control panels
• Hoist and conveyor direction control in industrial plants
• Washdown and food-processing areas requiring IP66 protection
• SmartWire-DT enabled control cabinets

Compliant with IEC/EN 60947-5 and UL 508. Part of the Eaton Moeller RMQ-Titan M22 modular command device series.
