Eaton 216378 M22-K01 Contact Element 1NC Screw Terminals

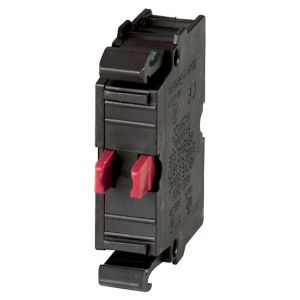

The Eaton M22-K01 is a front-mounting break contact element from the Moeller M22 series, providing 1 normally closed (NC) contact for control circuit monitoring, interlocking, and signal duties. Rated at 6 A at 220-240 V AC and 3 A at 24 V, it connects via screw terminals and clips directly to the front of compatible M22 operators. The compact 32 x 10 x 38 mm housing suits space-constrained control panel layouts.

Technical specifications:

• Model code: M22-K01
• Catalog number: 216378
• Manufacturer: Eaton
• EAN: 4015082163785
• Contact configuration: 1 NC (break contact)
• Rated current: 3 A at 24 V, 6 A at 220/230/240 V AC
• Conventional thermal current Ith (1-pole, open): 4 A
• Electric connection: Screw terminals
• Mounting: Front fixing
• Operating frequency: 3600 operations/h
• Actuator travel (DIN EN 60947-5-1): 4.8 mm
• Knob travel: 5.7 mm
• Actuating force max: 5 N
• Force for positive opening min: 15 N
• Ambient operating temperature: -25 °C to 70 °C
• Ambient storage temperature: -25 °C to 85 °C
• Pollution degree: 3
• Dimensions (W x H x D): 32 x 10 x 38 mm
• Weight: 0.01 kg
• Climatic proofing: Damp heat cyclic (IEC 60068-2-30), damp heat constant (IEC 60068-2-78)
• Certifications: CE, UL 508, CSA C22.2 No. 14-05, IEC/EN 60947-5-1, VDE

Features and benefits:

• Positive opening mechanism with minimum 15 N force ensures reliable NC contact break for safety-critical interlock circuits
• Front mounting and front fixing simplify installation and retrofitting onto M22 series operators without disassembly
• Screw terminal connection provides secure, vibration-resistant wiring in industrial control panels
• High operating frequency of 3600 operations/h suits demanding continuous-duty machine control cycles
• Wide operating temperature range of -25 °C to 70 °C and pollution degree 3 rating support harsh industrial environments
• Compatible as auxiliary contact with NZM1, NZM2, NZM3, and NZM4 circuit breakers for trip indication

Applications:

• Control circuit interlocking in motor starters and control panels
• Signal and feedback circuits in machine control and automation systems
• Auxiliary contact on NZM series molded case circuit breakers for trip indication
• Emergency stop and safety interlock circuits requiring positive-opening NC contacts
• Status monitoring and annunciation in industrial switchgear assemblies

Compliant with IEC/EN 60947-5-1 (low-voltage switchgear and controlgear - control circuit devices and switching elements). Part of the Eaton Moeller M22 modular pushbutton and signaling system.

Also known as: Eaton M22-K01, Eaton 216378, Eaton catalog 216378, Eaton model M22-K01, Eaton Moeller M22 NC contact block, Eaton M22 break contact element.
