Eaton 134930 DS7-342SX016N0-N DS7 Soft Starter 7.5 kW 16 A 230V

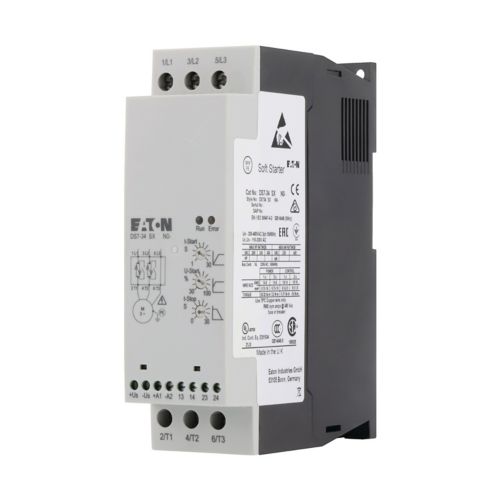

The Eaton DS7-342SX016N0-N is a three-phase soft starter in the Generation 7 DS7 series, rated 16 A for mains voltages of 200 - 480 V AC. Control voltage is 110/230 V AC, and built-in internal bypass contacts reduce losses during full-speed operation. Frame size FS2, 45 mm wide and 0.4 kg, fits compact switchgear panels.

Technical specifications:

• Model code: DS7-342SX016N0-N
• Catalog number: 134930
• Manufacturer: Eaton
• EAN: 4015081317455
• Series: Generation 7, frame size FS2
• Rated current: 16 A
• Mains voltage: 200 - 480 V AC
• Control voltage: 110/230 V AC
• Rated motor power: 4 kW at 230 V, 7.5 kW at 400 V (inline, three-phase); 5 HP at 200-230 V, 10 HP at 460-480 V (60 Hz)
• Relay outputs: 2 (TOR, Ready), 250 V AC
• Degree of protection: IP20 / NEMA 1
• Pollution degree: 2, overvoltage category II
• Dimensions (WxHxD): 45 x 150 x 118 mm, weight 0.4 kg
• Mounting: vertical
• Ambient operating temperature: -5 °C to 40 °C
• Storage temperature: -25 °C to 60 °C
• Altitude: max 2000 m (1% derating per 100 m above 1000 m)
• Certifications: CE, UL (File E251034), CSA (File 2511305), IEC/EN 60947-4-2, UL 508, GB 14048.6, C-Tick

Features and benefits:

• Internal bypass contacts reduce steady-state heat dissipation and extend device service life
• Suppression of DC components and closing transients protects motor windings during starting
• Dual 110/230 V AC control voltage simplifies integration into diverse panel configurations
• Potential isolation between power and control sections enhances panel safety
• Climatic proofing to IEC 60068-2-3 and IEC 60068-2-30 ensures reliability in humid environments

Applications:

• Soft starting of pumps and fans in HVAC and water treatment installations
• Controlled acceleration of conveyors and material handling equipment
• Compressor and refrigeration plant motor starting panels
• OEM switchgear rated for mains supplies up to 480 V AC

Compliant with IEC/EN 60947-4-2 and UL 508. Part of the Eaton DS7 Generation 7 soft starter family.

Also known as: Eaton DS7-342SX016N0-N, Eaton 134930, Eaton catalog 134930, Eaton model DS7-342SX016N0-N, DS7 soft starter 16A.
