Apator 63-823259-141 RBK 00 Pro SD-M Safety Door Motorized NH00 160A
Free Shipping
Get free shipping on orders exceeding €300!

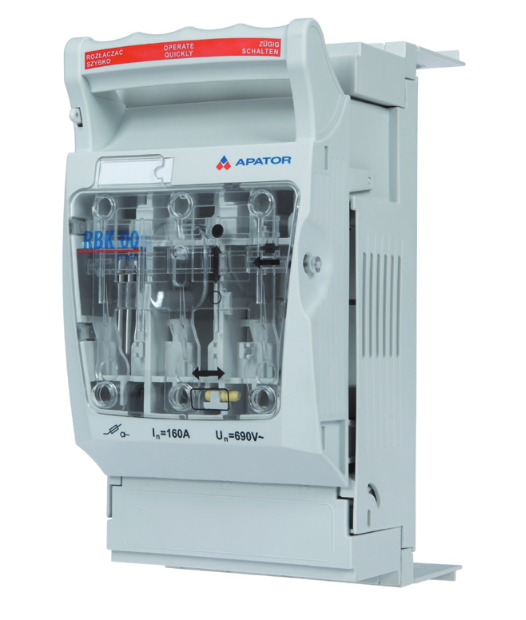

The Apator 63-823259-141 RBK 00 Pro SD-M is a motorized horizontal fuse switch disconnector with safety door interlock for NH00 fuse links, rated 160A at 690V. The SD suffix adds a door interlock mechanism that prevents the enclosure door from opening while the switch is in the closed/ON position, enhancing personnel safety. The M suffix provides motorized remote operation. Pro quality with silver-plated contacts. Compliant with IEC 60947-3.
Technical specifications:
- Part number: 63-823259-141
- Manufacturer: Apator
- Fuse size: NH00
- Rated current: 160A
- Rated voltage: 690V AC
- IP rating: IP20
- Standards: IEC 60947-3, EN 60947-3
Applications:
- LV distribution boards and switchgear
- Motor feeder protection
- Sub-distribution switching in industrial installations
Also known as: Apator 63-823259-141, RBK 00 Pro SD-M Safety Door Motorized NH00 160A, fuse switch disconnector 160A NH00.
When sold out, you can still preorder by requesting a quote below.
Important
The images shown are for illustration purposes only and may not be an exact
representation of the product.
