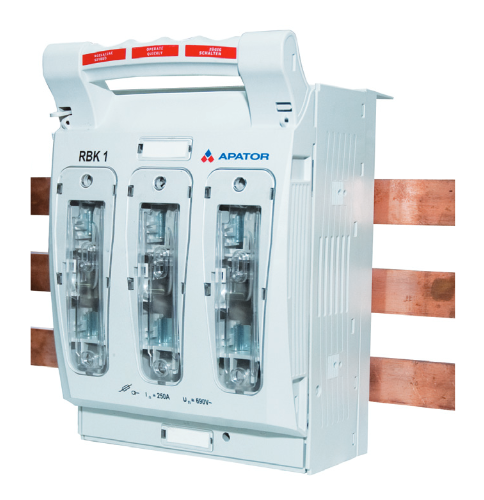

63-811750-061 Apator RBK 1 Pro SD-M 60 Fuse Switch Disconnector 250A
Free Shipping
Get free shipping on orders exceeding €300!
The Apator 63-811750-061 is the RBK 1 Pro SD-M 60 HRC fuse switch disconnector rated at 250A for NH1 fuse links, incorporating a 60-degree safety door mechanism. The SD-M 60 interlock prevents the panel door from being opened while the disconnector is in the on position, providing a physical barrier against inadvertent contact with energised fuse links during normal operation.
- Rated current: 250A
- Fuse size: NH1
- Rated voltage: up to 690V AC
- Short circuit capacity: 100kA
- Door mechanism: SD-M 60 degree safety door interlock
- Operation: manual rotary handle with door interlock
- Switching function: load break switch with integrated NH fuse carrier
- Mounting: panel or DIN rail compatible
- Housing: glass-fibre reinforced thermoplastic
- Standards: IEC 60947-3
The 60-degree door interlock is designed to comply with panel safety requirements and supports safe isolation procedures. Suitable for sub-distribution boards, motor feeders, and cable protection in industrial environments. Catalog number: 63-811750-061.
