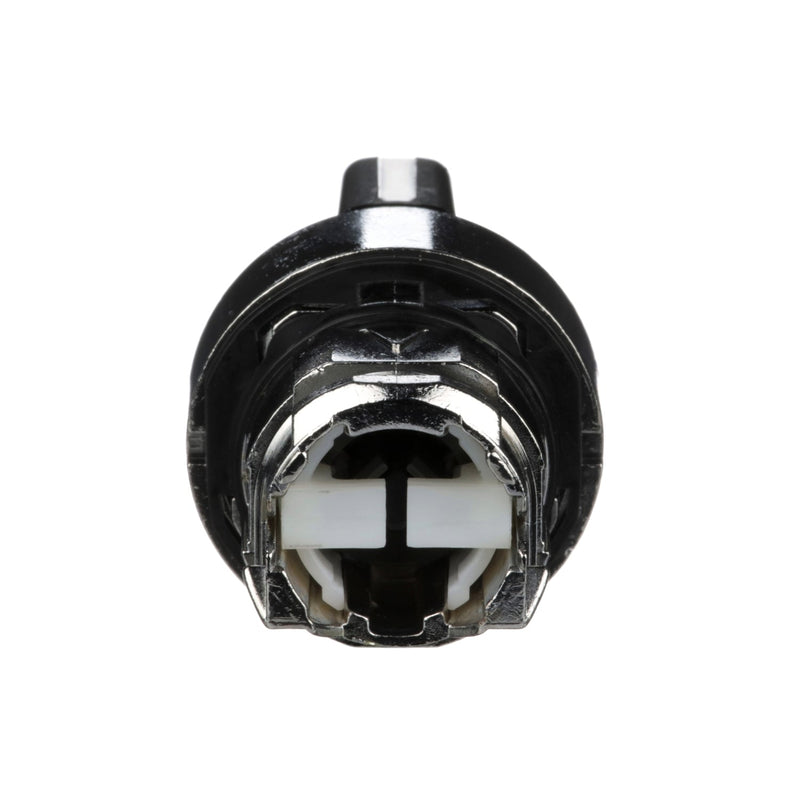

Schneider Electric ZB4BD5 Selector Switch Head Ø22 3-Position Spring Return

The Schneider Electric ZB4BD5 is a black chromed metal selector switch head from the Harmony XB4 range (product group ZB4), designed for Ø22 mm panel cutouts. It provides three switching positions at ±45° with spring return to centre, and is supplied as a basic head element for combination with compatible contact blocks.

• Product range: Harmony XB4, product group ZB4
• Head material: Chromed metal
• Colour: Black
• Mounting diameter: 22.5 mm
• Positions: 3 (±45°), spring return to centre
• Operating temperature: -40 to +70 °C
• IP rating: IP67 (IEC 60529), IP69, IP69K
• NEMA rating: NEMA 4X, NEMA 13
• Impact resistance: IK06 (IEC 50102)
• Mechanical durability: 1,000,000 operating cycles
• Vibration resistance: 5 gn, 2–500 Hz (IEC 60068-2-6)
• Shock resistance: 30 gn / 18 ms; 50 gn / 11 ms (IEC 60068-2-27)
• Standards: IEC 60947-5-1, IEC 60947-5-5, IEC 60947-1, IEC 60947-5-4, UL 508, CSA C22.2 No 14, JIS C8201-5-1, JIS C8201-1
• Certifications: BV, CSA, DNV, LROS (Lloyd's Register of Shipping), UL
